2.3 Earthwork Takeoff

Generate Excavation Takeoff

Output the volume of soil removed in a table breakdown and export to spreadsheet.

Summary

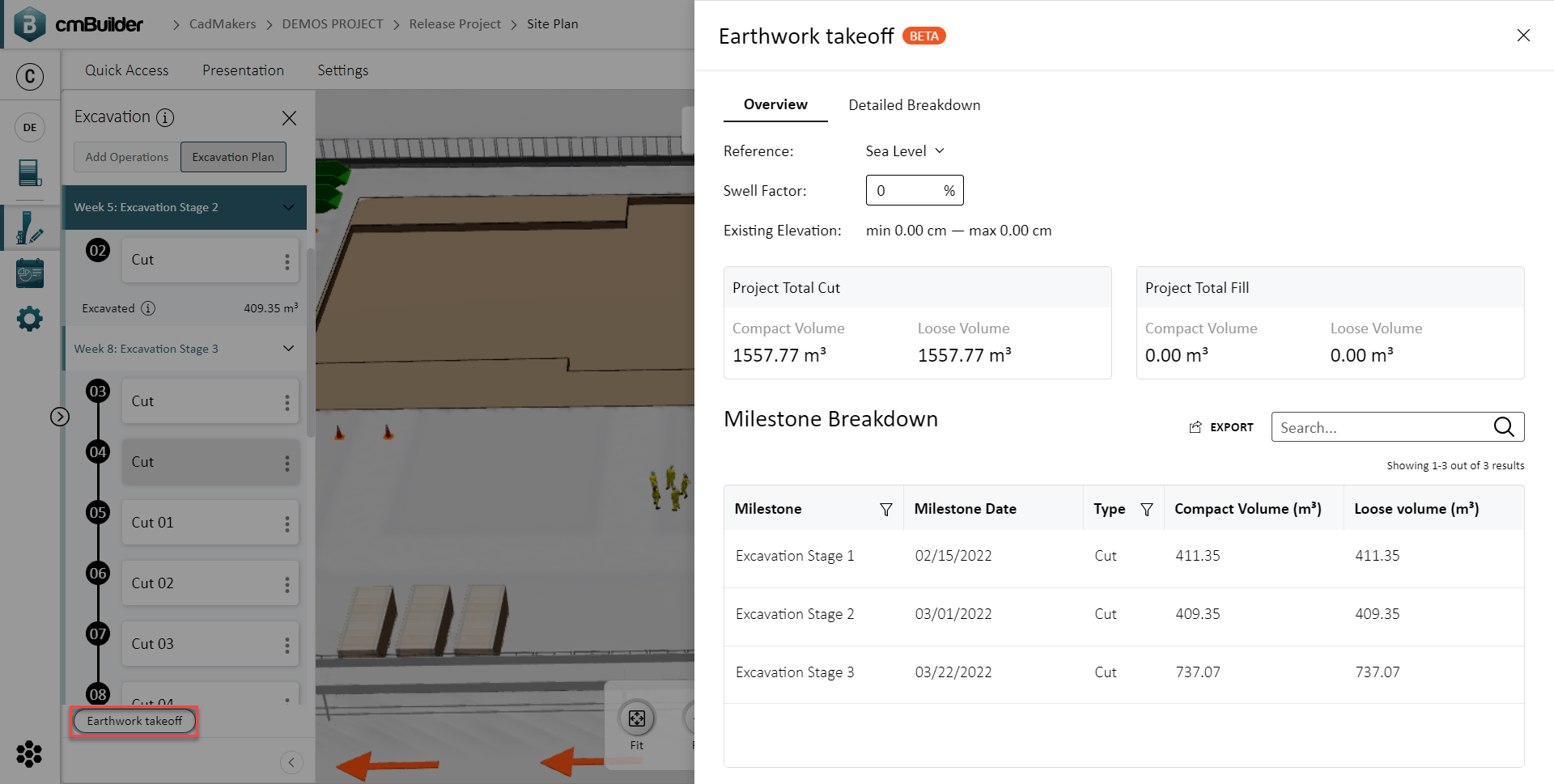

• Under Excavation Plan, click Earthwork takeoff
• Here you can view and export a breakdown of the excavation operations performed to date
• Overview tab -
• Swell Factor - percentage adjustment representing the increase in volume
• Project total cut - calculated compact and loose volumes of cuts
• Project total fill - calculated compact and loose volumes of fills
• Milestone Breakdown - summary of milestones and volume of materials used
• Export breakdown as a .csv file
• Detailed Breakdown tab -
• Tabular breakdown of each element, occurring milestone and volume used
• Export breakdown as a .csv file
