7.1 Minimum Distance

Measure the absolute minimum distance between two objects' surfaces.

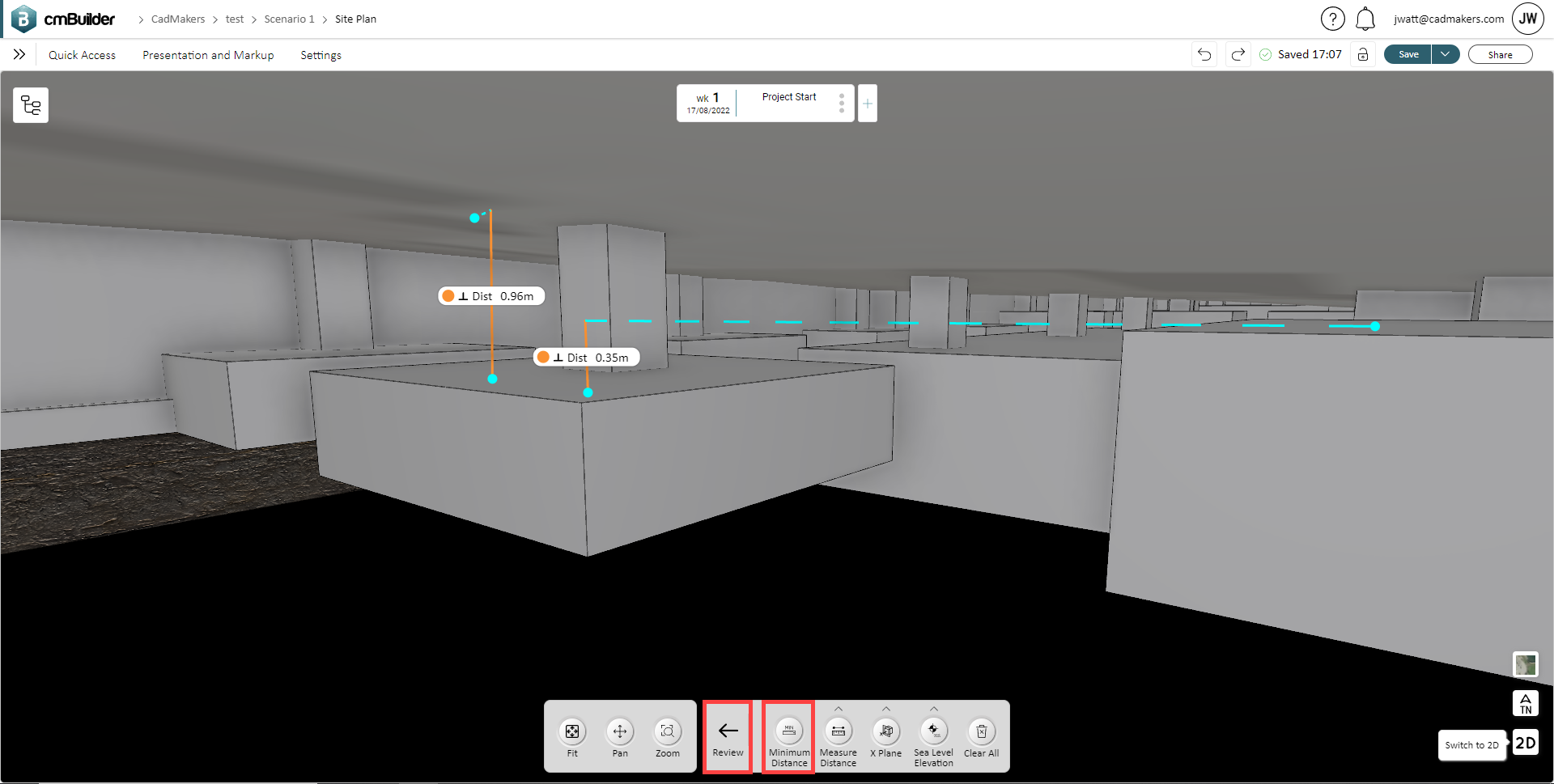

  1. Click Review
  2. Select Minimum Distance
  3. Select the points of two surfaces to measure between

Tips & Tricks:

  • It is possible to take multiple measurements at once
  • Click the ESC key to exit the tool, and measure distance to continue taking measurements
  • Click Clear All to delete all visible measurements
