7.3 Custom Section

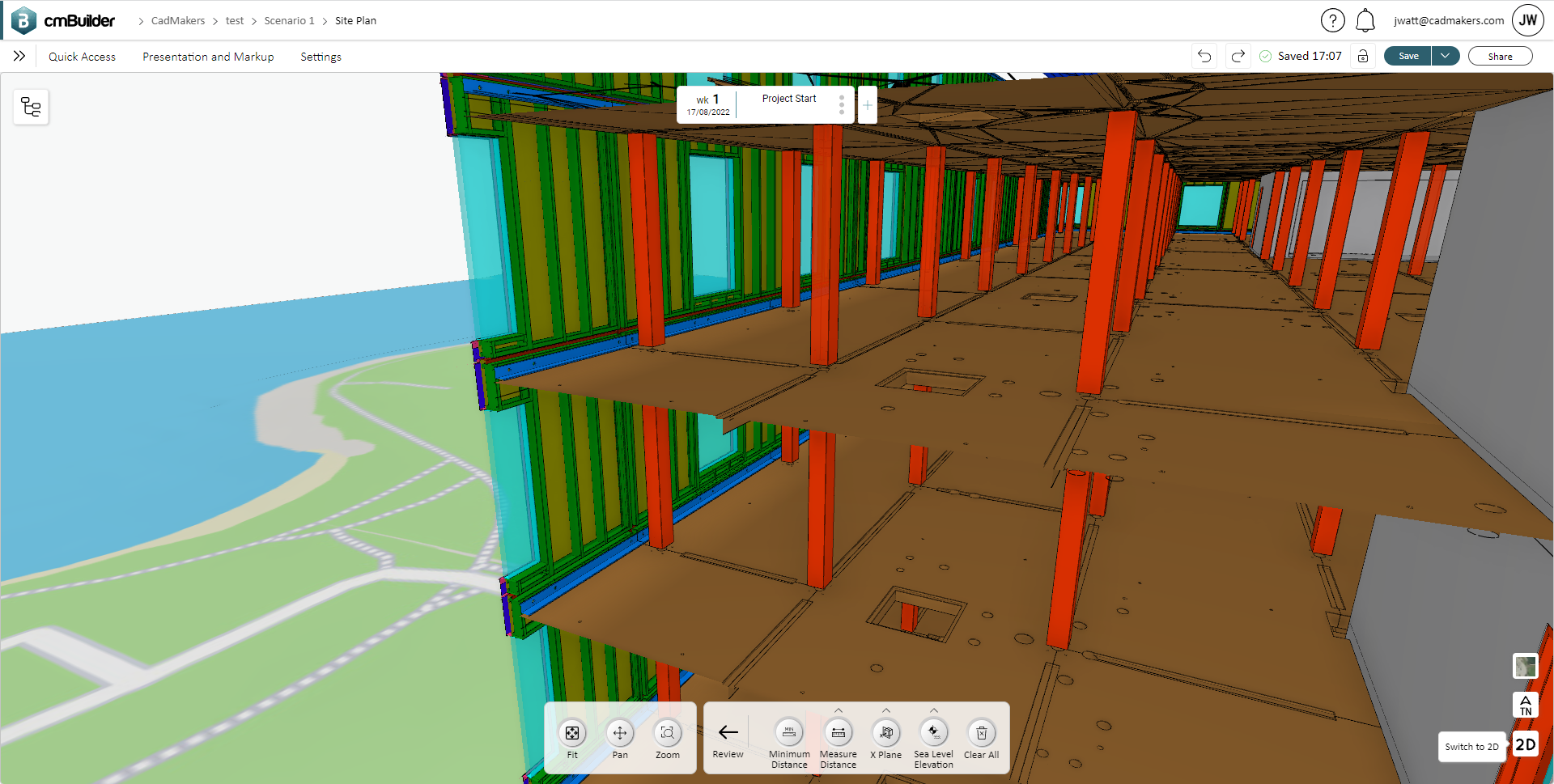

Take a section cut of objects such as building models, and the terrain.

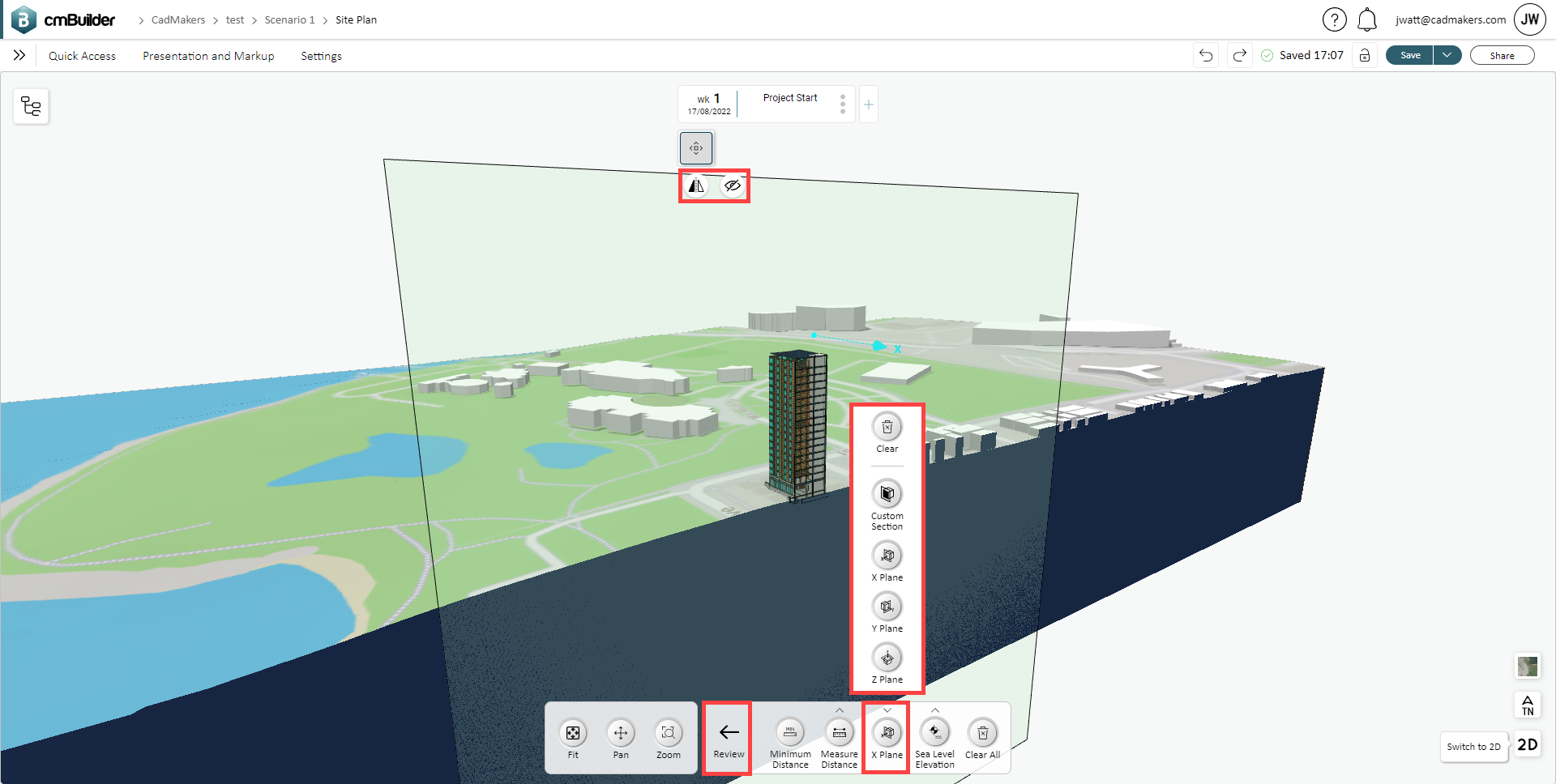

  1. Click Review
  2. Select Custom Section
  3. Select from either the X, Y or Z plane
  4. Or, click on a surface to create a section on the selected plane
  5. Drag the arrow handle in the direction of axis to adjust section cuts


  • Double click the transparent plane to adjust the section
  • Click the eye icon from the floating menu to hide the section plane
  • Click the mirror icon from the floating menu to invert the current section
  • Click Clear or Clear All to remove the section cut

Note: Only one section cut can be made at a time.
