Adjust basic view options and visibility of objects in the Site Plan.
Map Type
- Default: Show the default map style view
- Satellite View: Show the satellite image of the map tile
- This can also be accessed from the map button, in the bottom right corner of the viewer
Environment
- Reflections in windows: Customize reflection lights on windows
- Environmental Lighting: Customize ambient lighting for the scenario
- Background Color: Customize the background color. You can select between system default or custom solid colors, and backdrops, including the sky gradient.
Google 3D Tile Display Settings
Google 3D Tile maps extend far into the horizon, with reduced quality outside of the project site. There are settings to deactivate, darken or delineate between the extended map and project site. These settings are available separately for site plan edit mode and presentation mode.

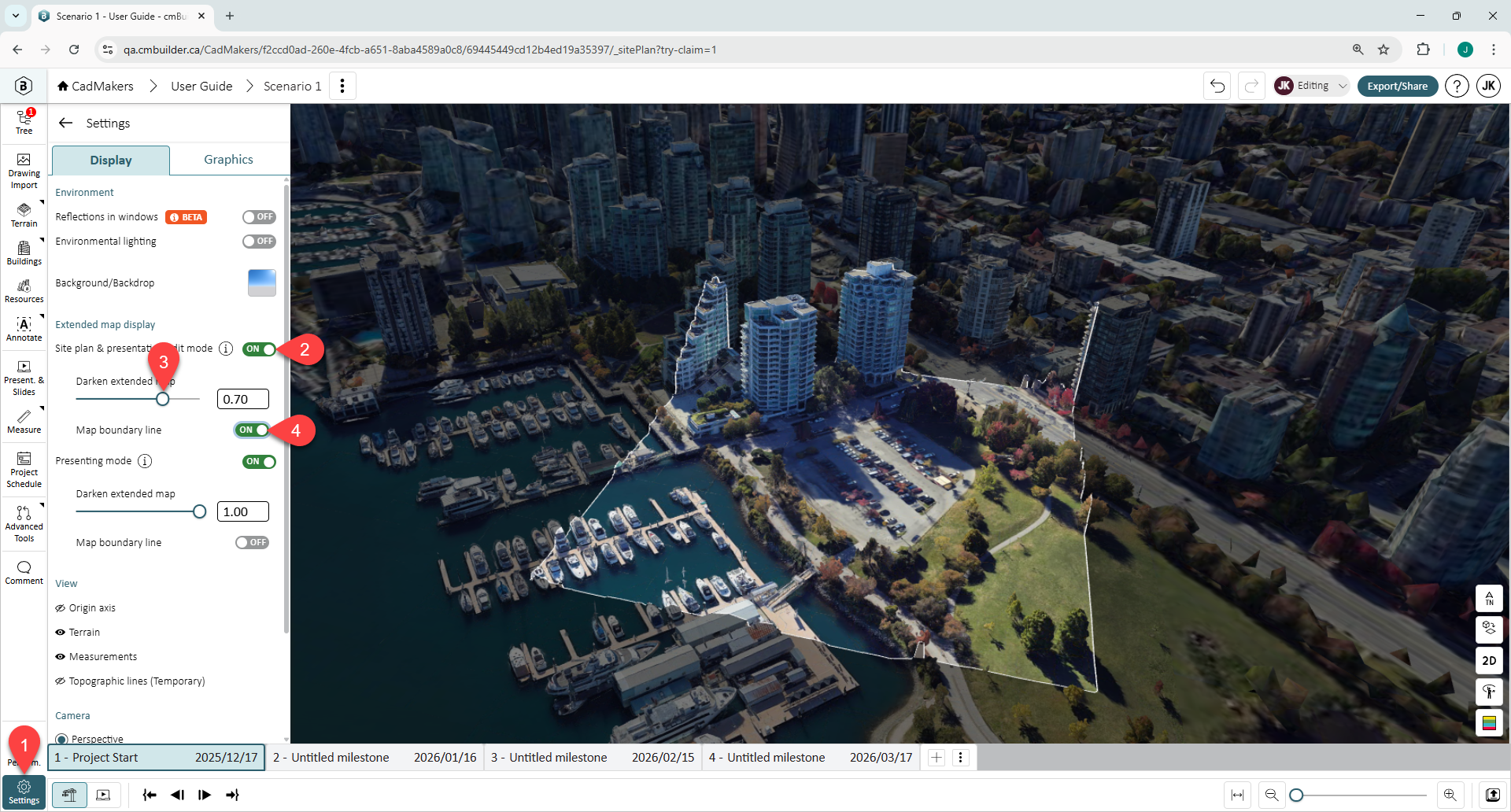

- In Settings (1) deactivating Extended Map Display (2) will hide the area surrounding your project site.
- In Settings (1) use the slider (3) to Darken the Extended Map to help focus attention on the project site. A lower value = lighter, while a higher value = a darker, more subdued extended map.
- In Settings (1) users will find an option to Display the Map Boundary Line (4) that separates the work site from the extended map area. Displaying the boundary helps focus attention on the project site.
View
Hide and show the following items:
- Origin Axis: origin point of the scenario
- Terrain: map tile to show only the buildings or excavation boundary
- Measurements: measurements that show when using the polyline tool or the manual measurements made from the Review Tab
- Topographic Lines: the elevation contour lines of the area
Camera
Select a view type - perspective, orthographic, or 2D/top down:

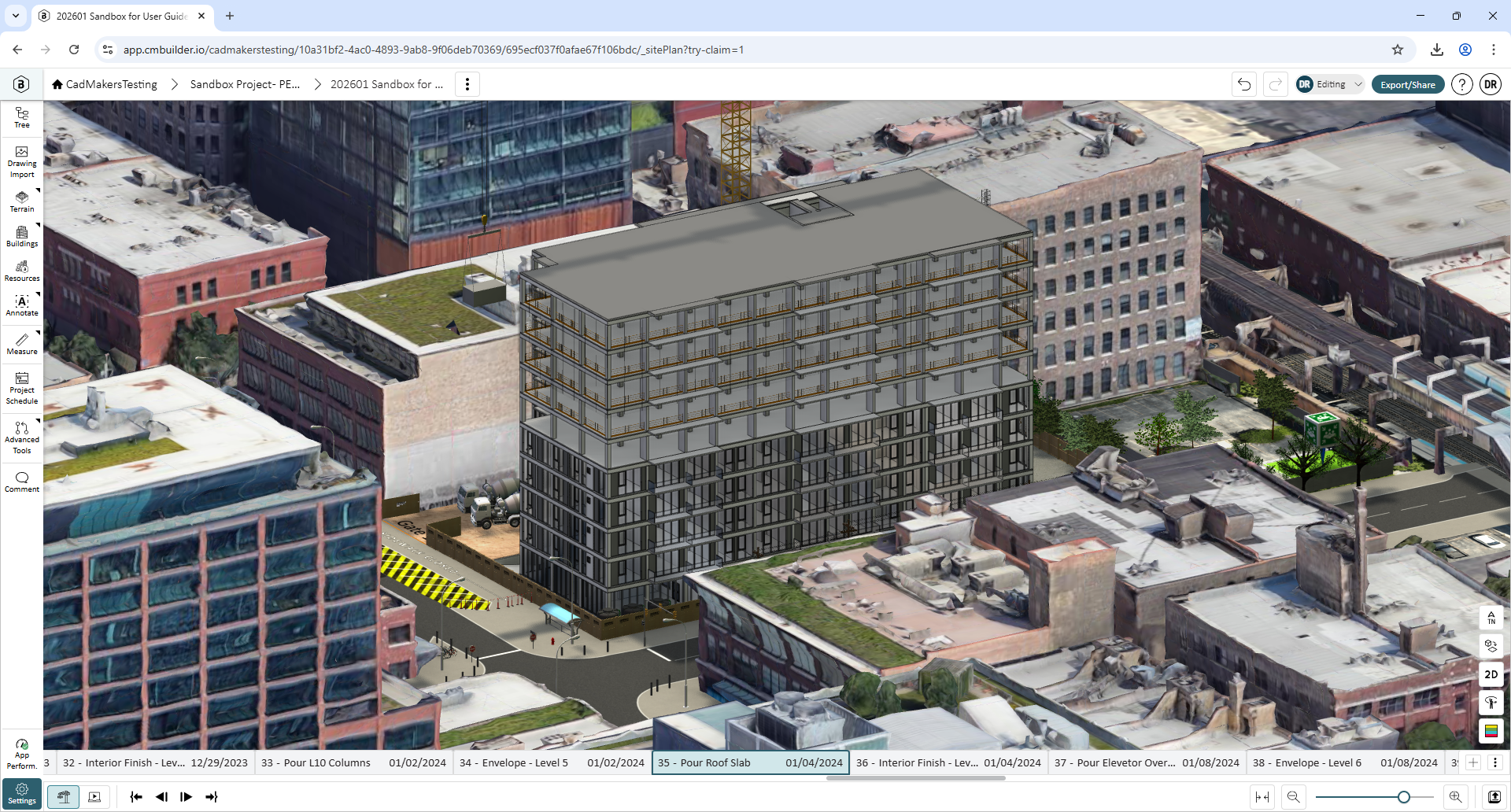

- Perspective: 3-Dimensional realistic view
- Higher view angles useful for exploring inside a BIM model, or 2D export

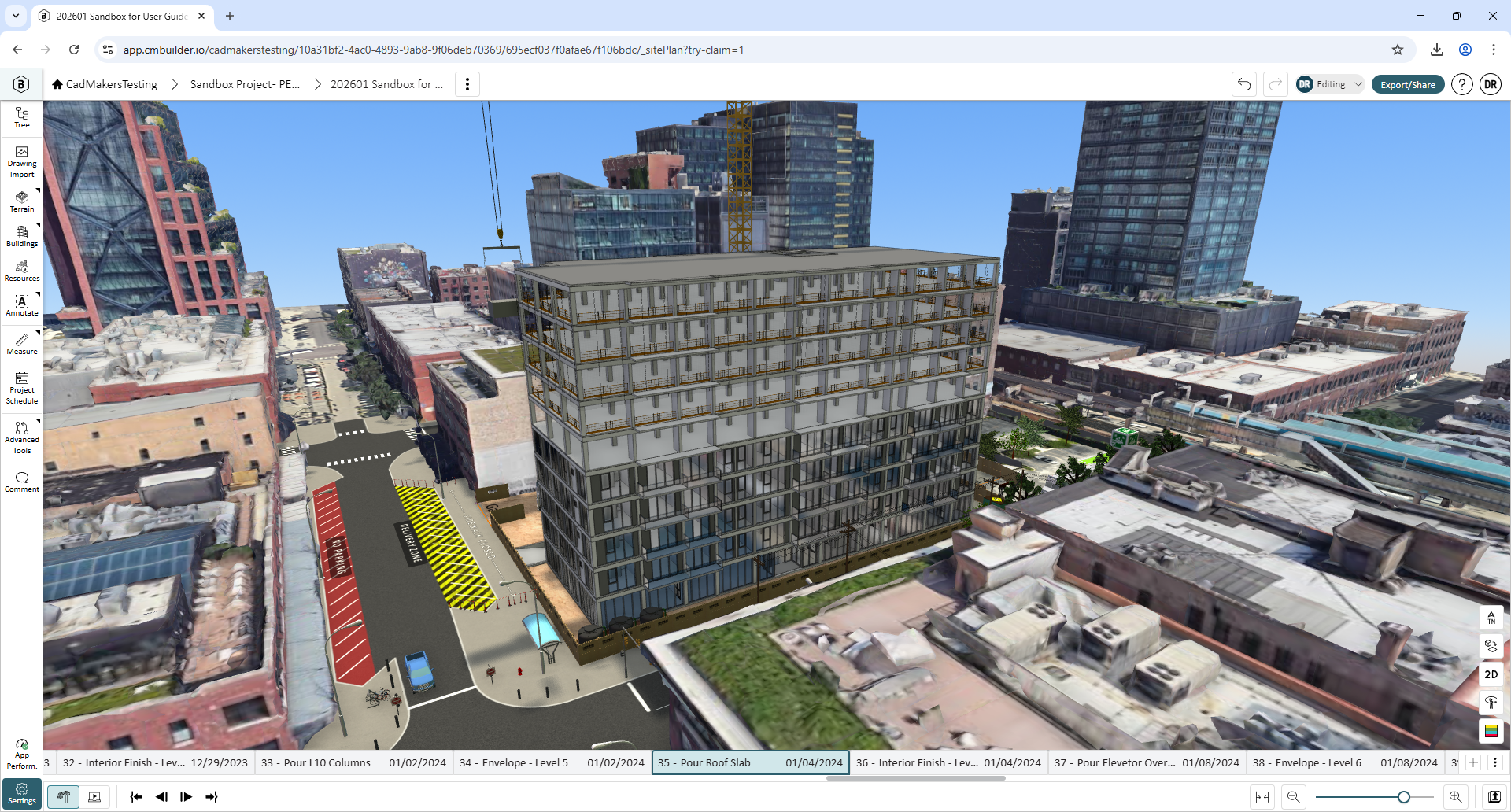

- Orthographic: 3-Dimensional with parallel perspective.

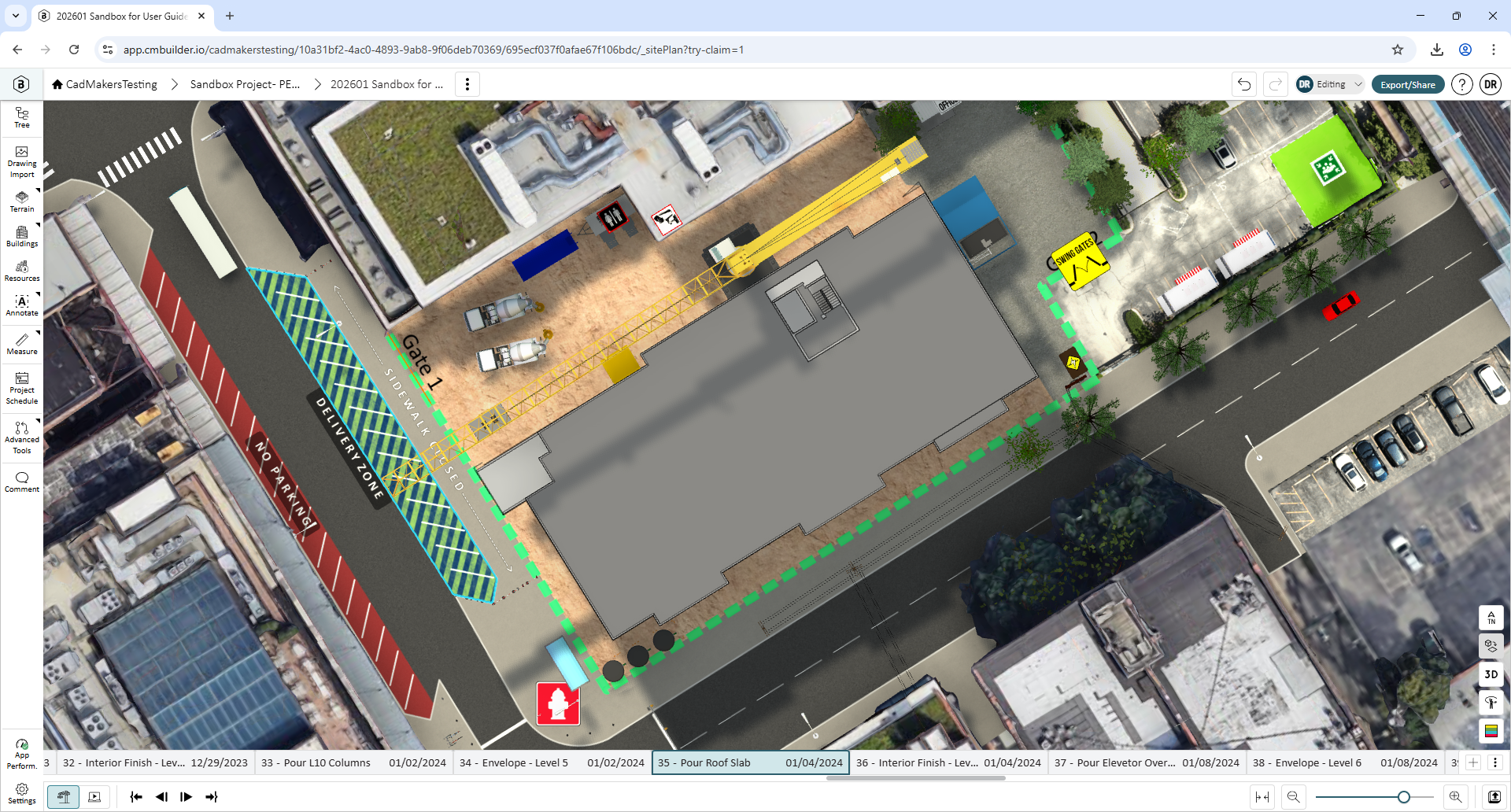

- Top Down: 2-Dimensional bird's eye view (plan view) of the Site Plan
- This can also be accessed from the 2D button, in the bottom right corner of the Site Plan
