0.2.2 Graphics

Available with the Following Subscriptions: All Subscriptions
Available for the Following Roles: All Roles

Adjust and customize the visual graphics of environment and objects in the viewer.

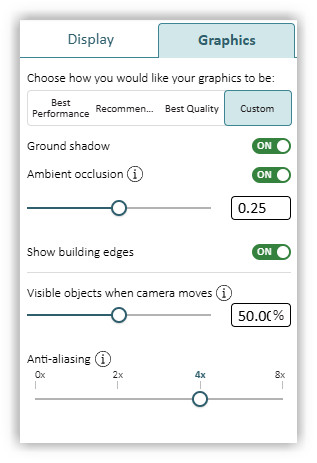

Predefined Configurations

Choose from the following preset graphic setting configurations:

• Best Performance

• Optimize for performance
• All graphic settings disabled to increase frame rate

• Recommended

• Optimize for both performance and quality

• Best Quality

• Optimize for quality

• Custom

• Manually adjust graphic settings

Shadow

• Ground Shadow: Toggle shadows that appear on the ground from structures and objects
• Ambient Occlusion: Toggle and adjust realistic shadows from ambient lighting on building model surfaces

Building & Object Display

• Building Edges: Show the edges of the 3D building model
• Object White Line: Show white outline when selecting objects
• Anti Aliasing: Increasing Anti-aliasing will increase the smoothness of object edges, at the cost of a higher performance demand

What is Ambient Occlusion?

• Ambient Occlusion is a rendering setting that calculates the exposure to, or obstruction of, an object to ambient lighting
• Observe this setting change in the corners of rooms or where there are surrounding objects which generate a shadow

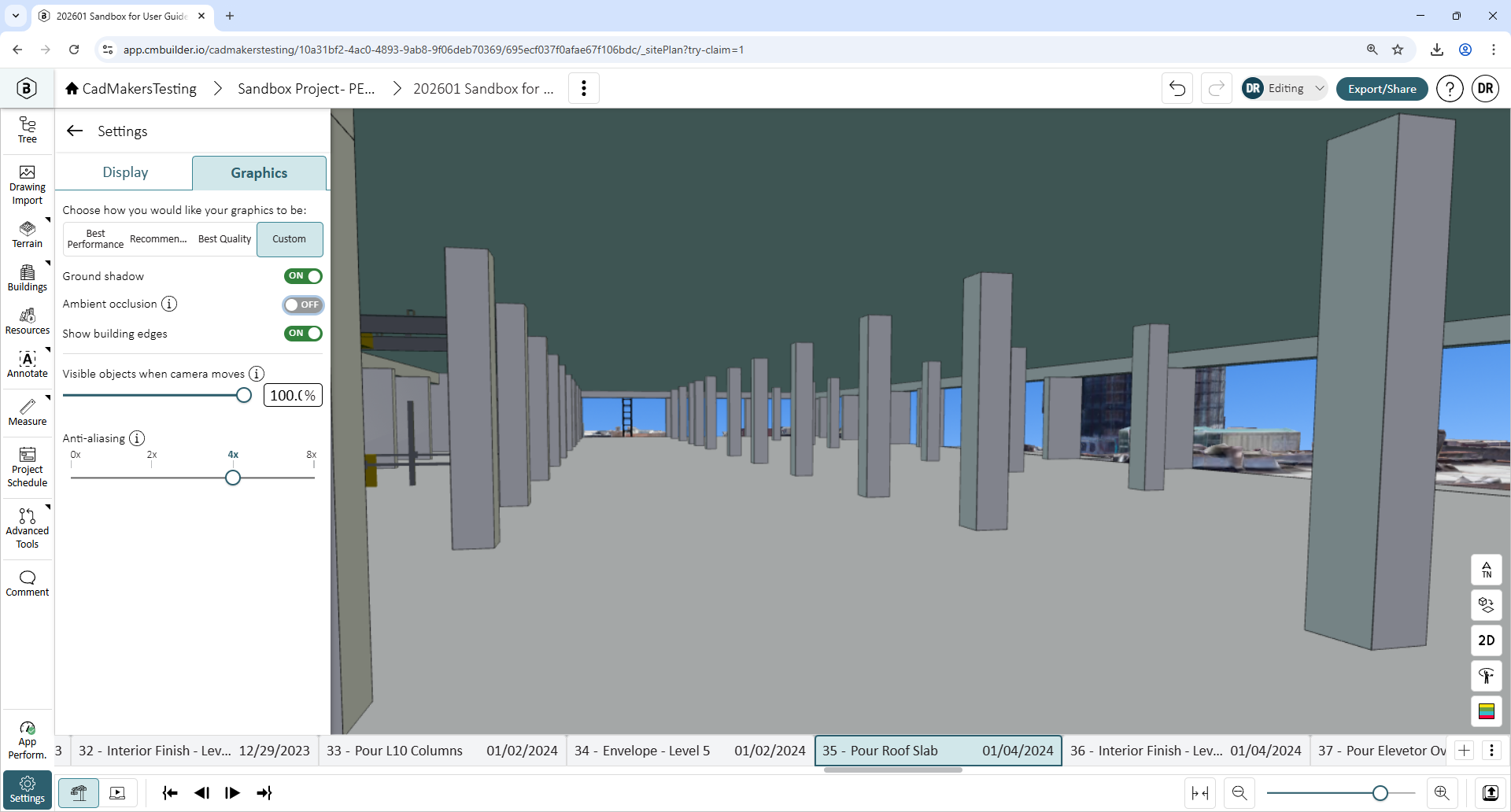

Before

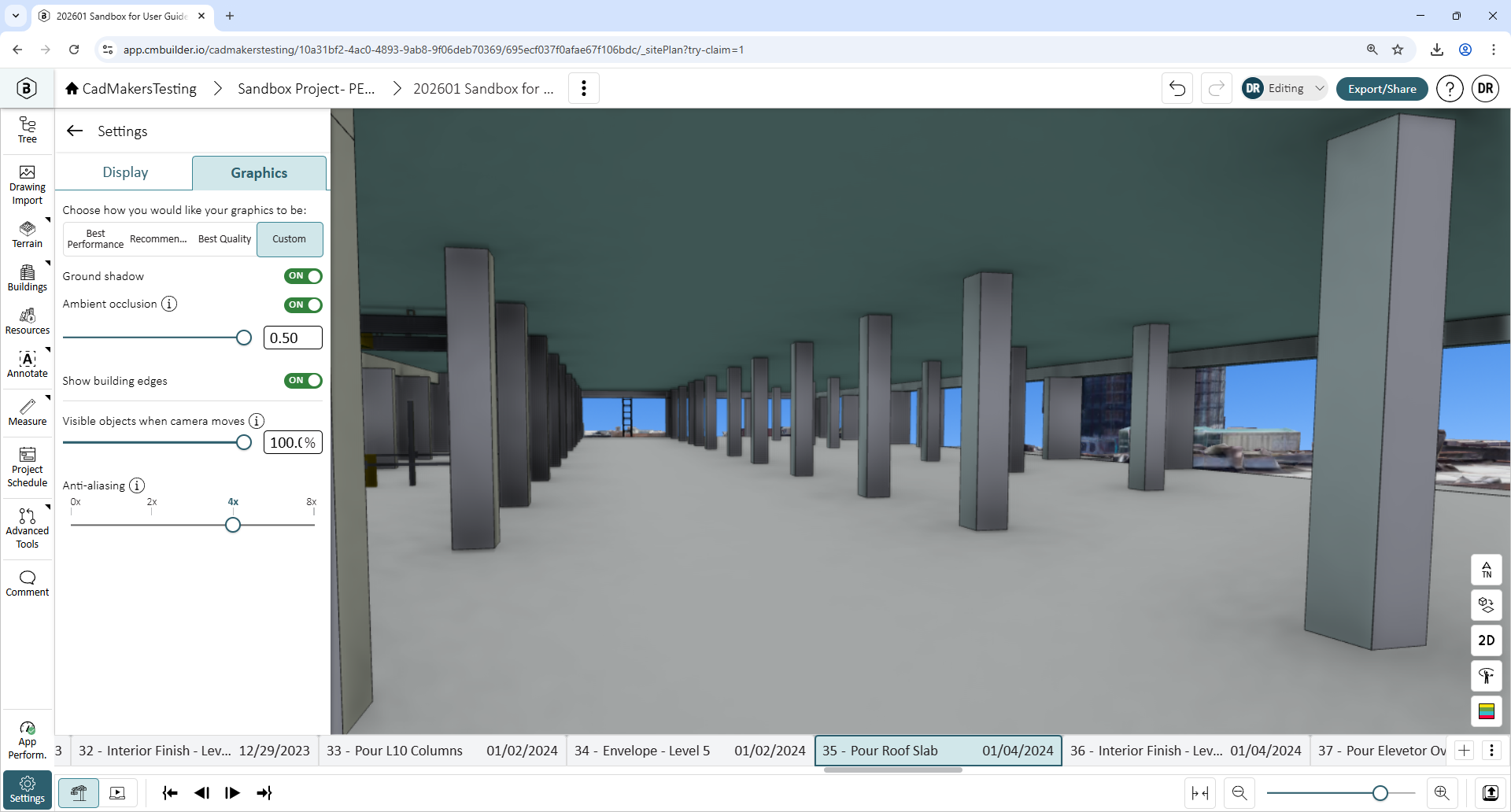

After
