2.2 Excavation Settings

Edit Excavation Settings

Learn how to adjust the excavation boundary and texture.

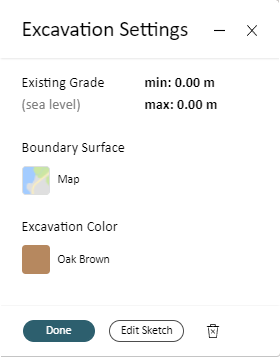

  • Under Excavation Plan, Click Edit Excavation Settings
    • Here you can edit the sketch of the boundary, and change the color of the boundary or excavation operations
    • Existing Grade - Calculated sea level of initial excavation surface
    • Boundary Surface - Select default texture or color for the area surrounding the excavation operations
    • Excavation Color - Select default texture or color for the excavation operations areas
    • Edit Polyline - Use polyline tool to edit excavation boundary sketch
