9.4 Sea Level Elevation

Available with the following Subscriptions: All Subscriptions
Available for the following Roles: All Roles

Sea Level Elevation measurements can be used to view the elevation at a specific point in a Scenario, including on the Terrain, a BIM Model, or a Resource. You can take multiple measurements, these measurements will disappear when the page is refreshed or may be manually clear individual or all together.

Measure Sea Level Elevation

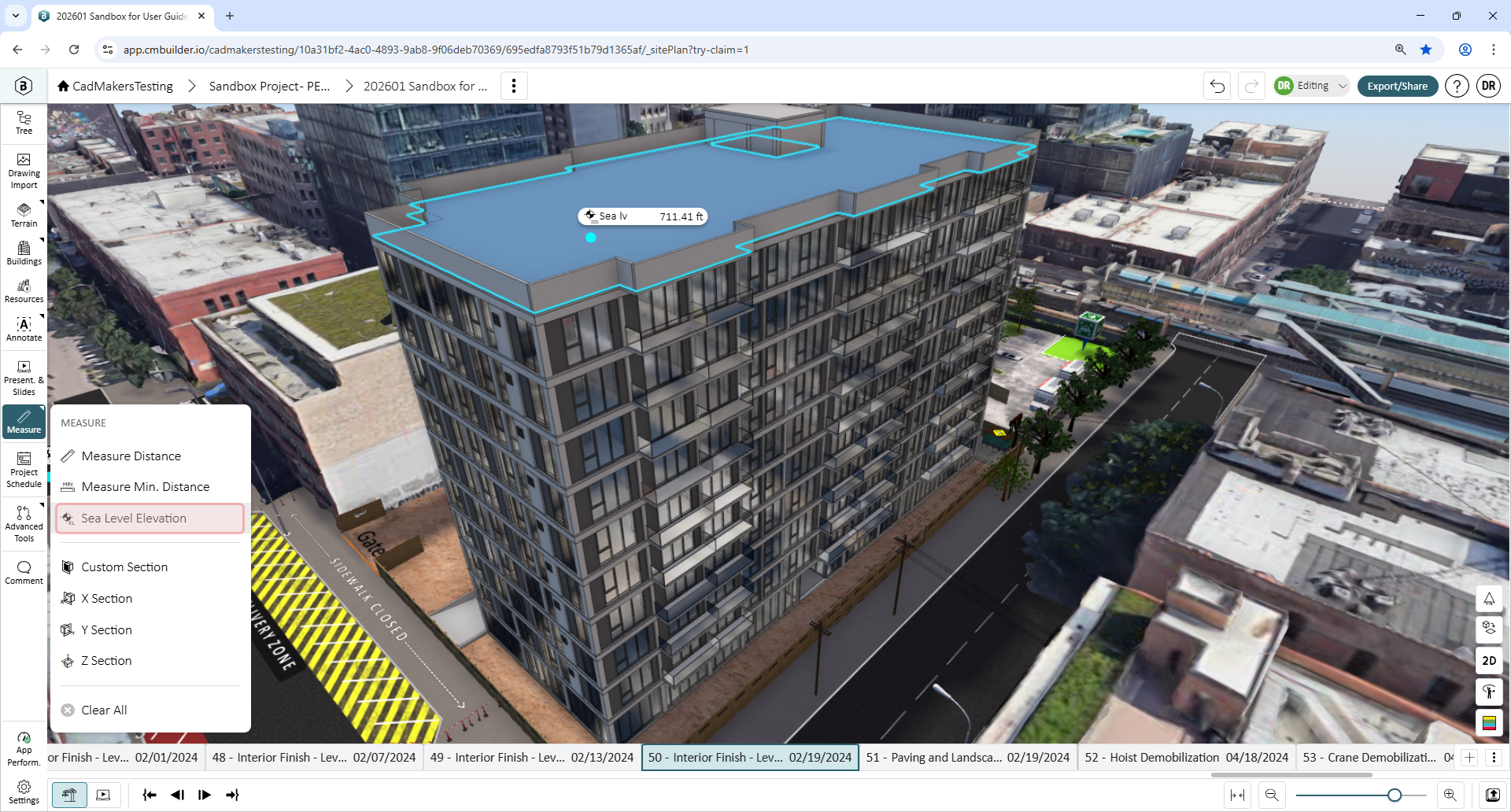

The elevation of any point on the Terrain, a BIM Model, or a Resource can be viewed by creating a Sea Level Elevation measurement pin.

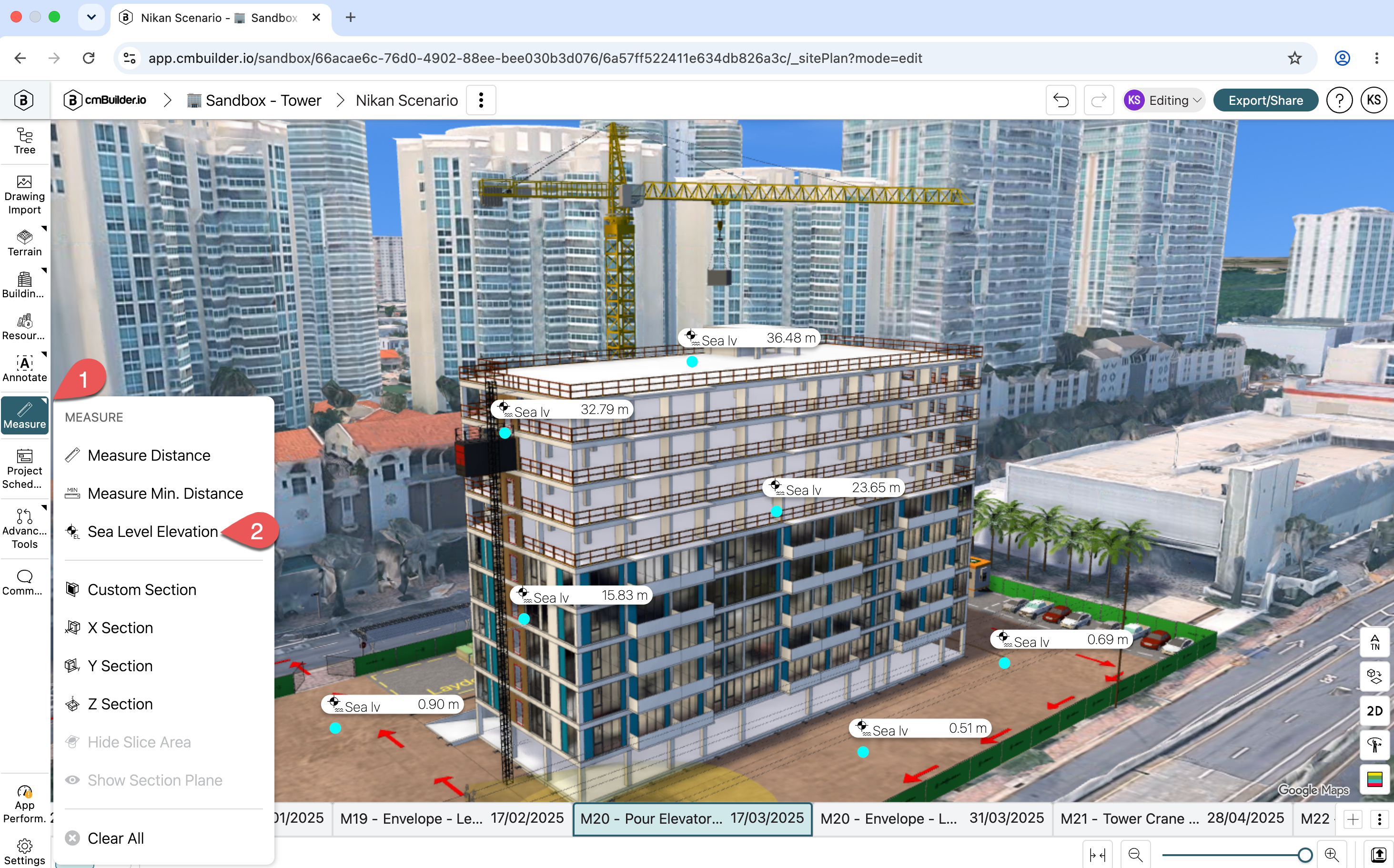

1. Click Measure (1) from the Toolbar and select Sea Level Elevation (2).
2. The elevation will be displayed on the pin as the mouse hovers over the various objects in the Scenario.
3. Click any point in the 3D Space to drop a pin. Click multiple locations to take more than one measurement.
4. Hit the Esc key when done to drop the tool.

Delete Sea Level Elevation Measurements

Sea Level Elevation marker pins can be removed individually or all together.

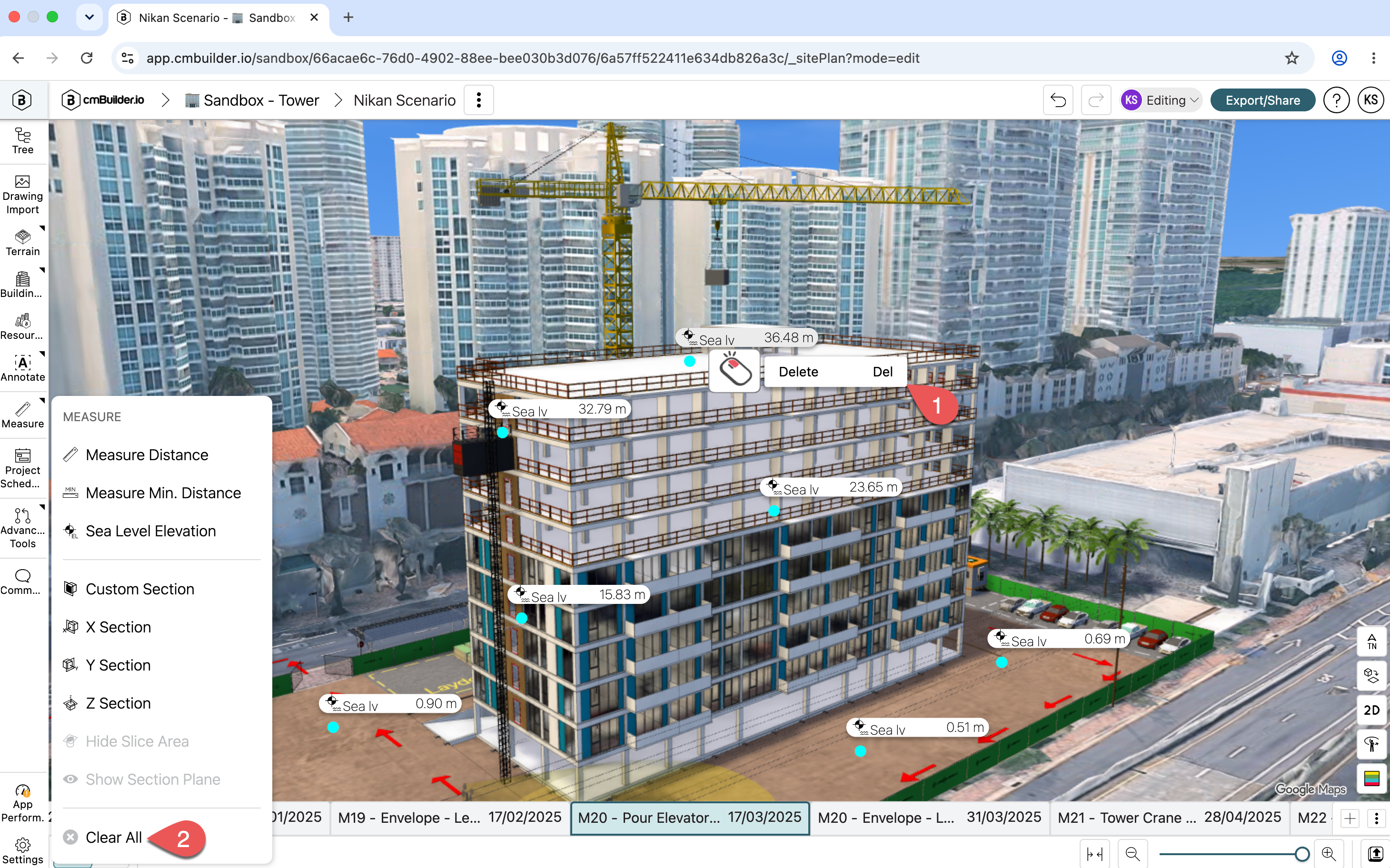

1. Right-click a single Sea Level Elevation measurement and select Delete (1) to remove it from the Scenario.
2. Click Clear All (2) in the Measure tool's Toolset to remove all measurements from the 3D Space.
