10.4 Export Slides

Available with the following Subscriptions: All Subscriptions
Available for the following Project Roles: All Roles

The Export Slides feature allows users to export Presentation Slides in high resolution. The exported images include all Slide markups and can also include the label and timeline displayed in the Presentation.

How to Export Slides

💡Note: Before Exporting slides, make sure to set up🔗Presentation slides or at least viewpoints. It is also recommended to review and/or modify the 🔗Presentation Settings.

There are two ways to launch the Export Slides feature:

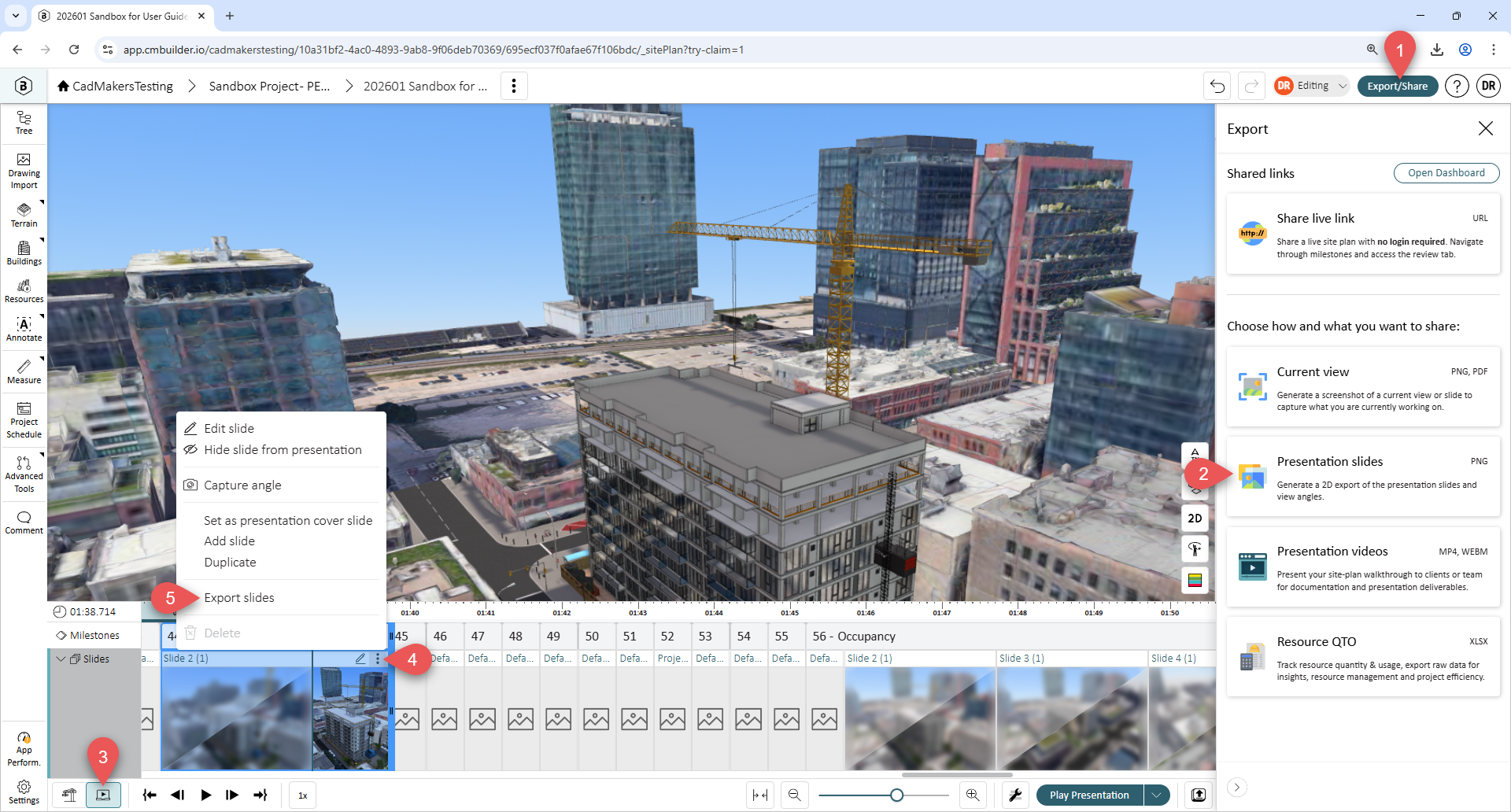

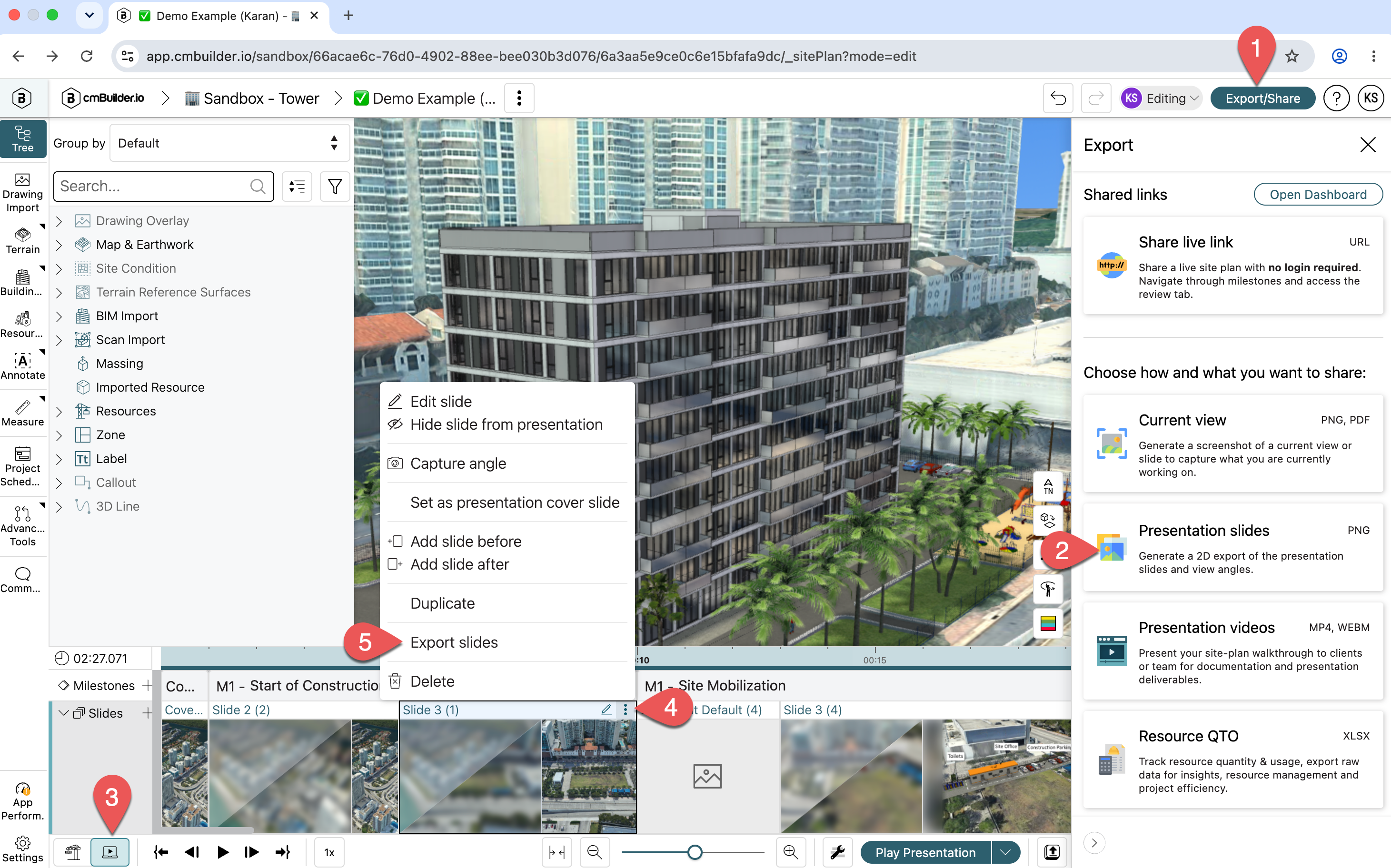

1. Click the blue Export/Share button (1) in the upper-right corner of a Scenario. From the Sidesheet, click Presentation Slides (2).

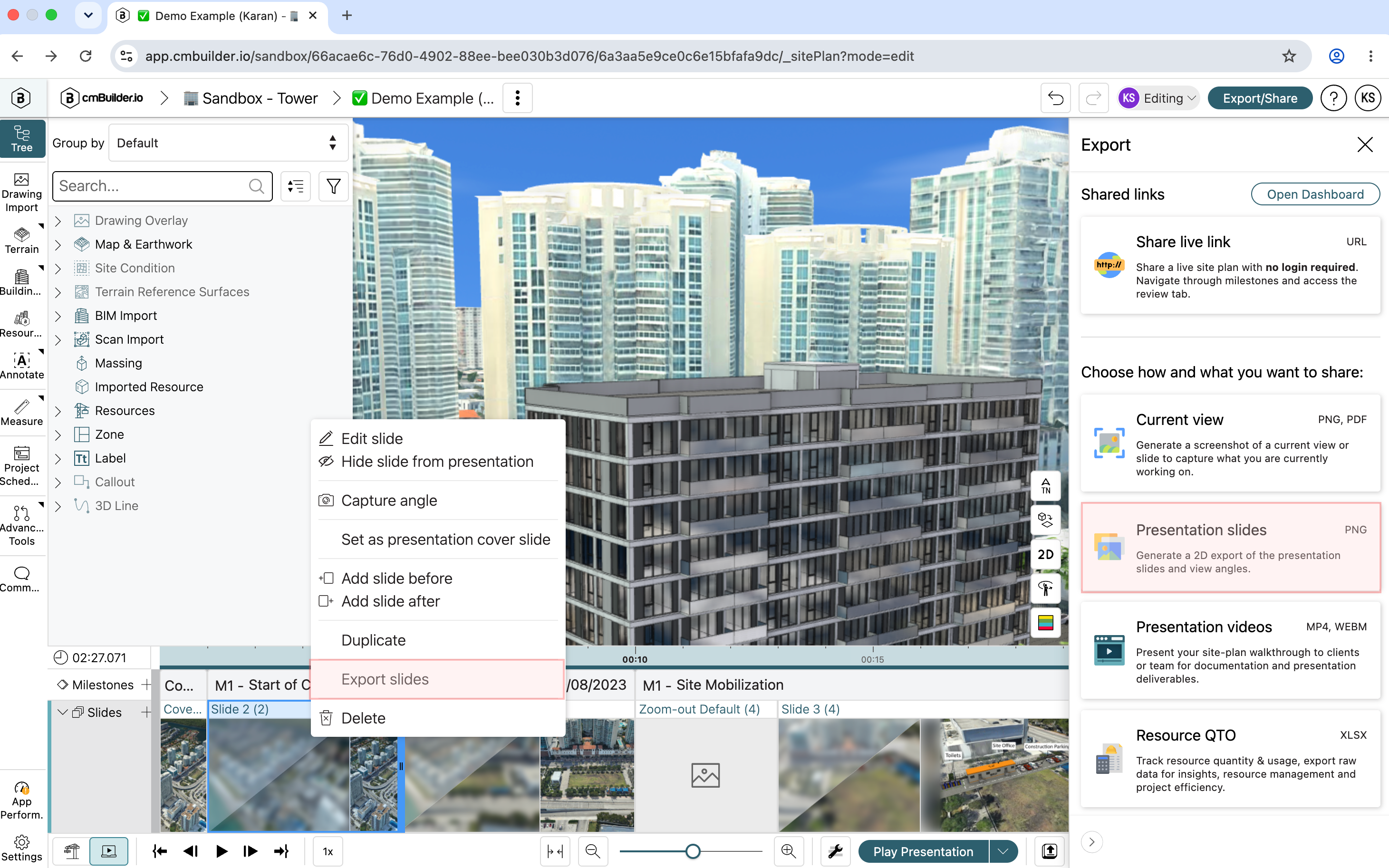

2. Switch to Presentation Mode (3) from the lower-left corner. In the Timeline, locate the Slide you want to export, click the 3-dot button (4), then select Export slides (5).

Both methods open the Export Presentation Slides modal.

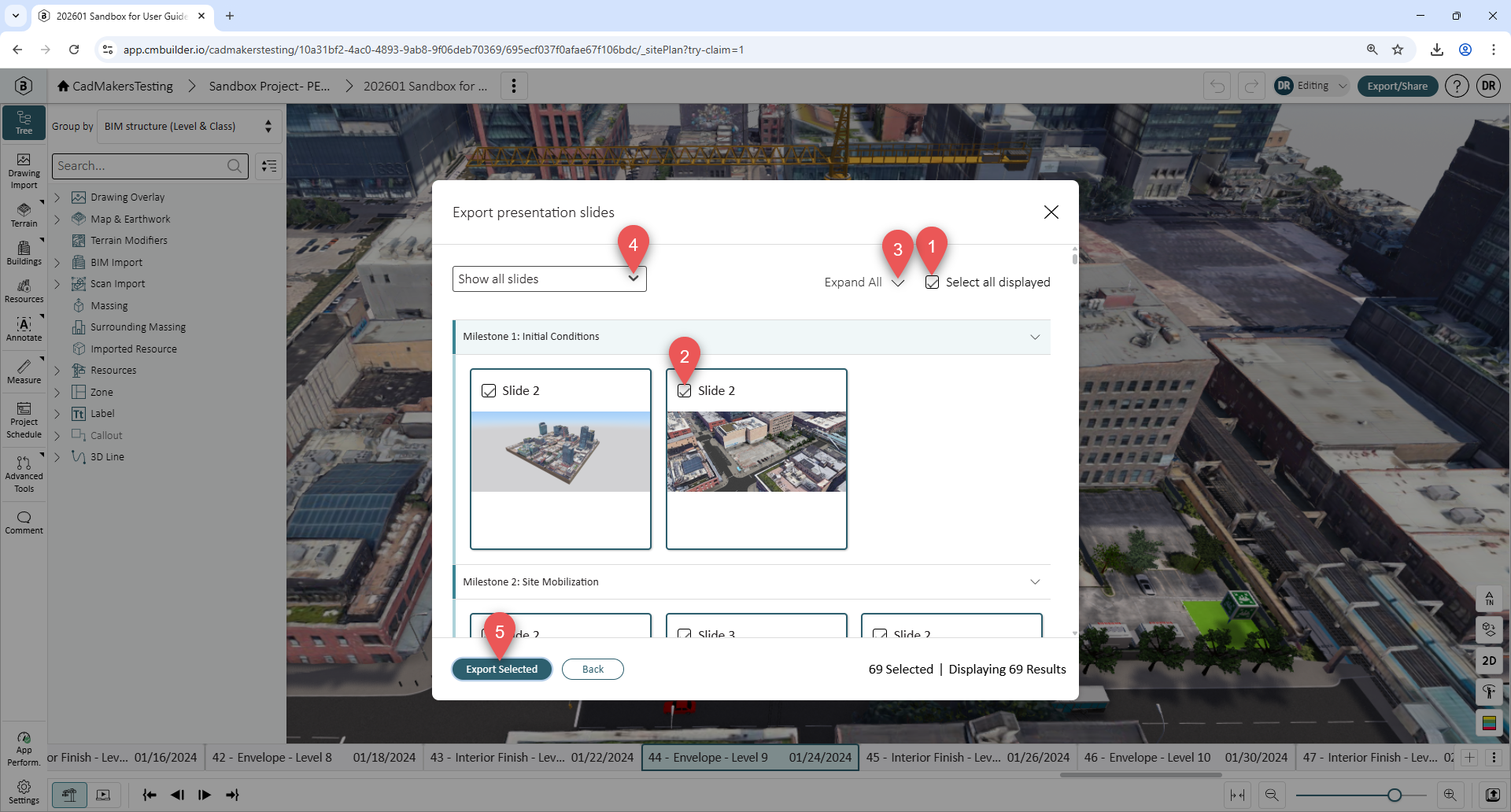

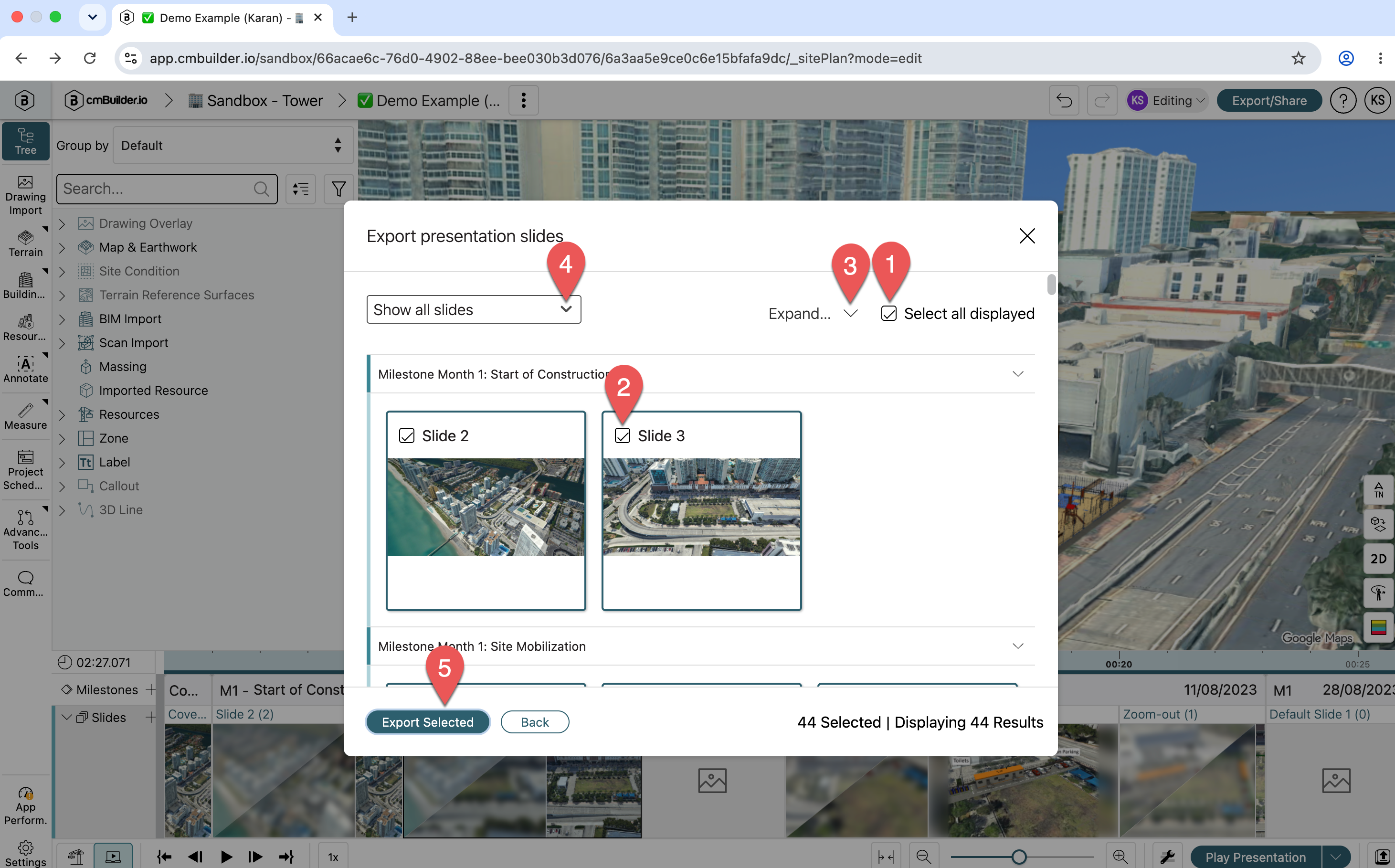

3. From the Export presentation slides pop-up, select the Slides you want to export using either the Select all displayed checkbox (1) or the checkbox for each individual Slide (2). All Slide markups are included in the exported images.
4. Use Expand/Collapse All (3) to expand or collapse the Slides list to help find specific Slides for Scenarios containing a large number of Milestones.
5. If the Scenario contains both visible and hidden Slides, use the  Show All/Hidden/Visible dropdown (4) to filter the displayed Slides.
6. Click Export Selected (5). A new pop-up appears.

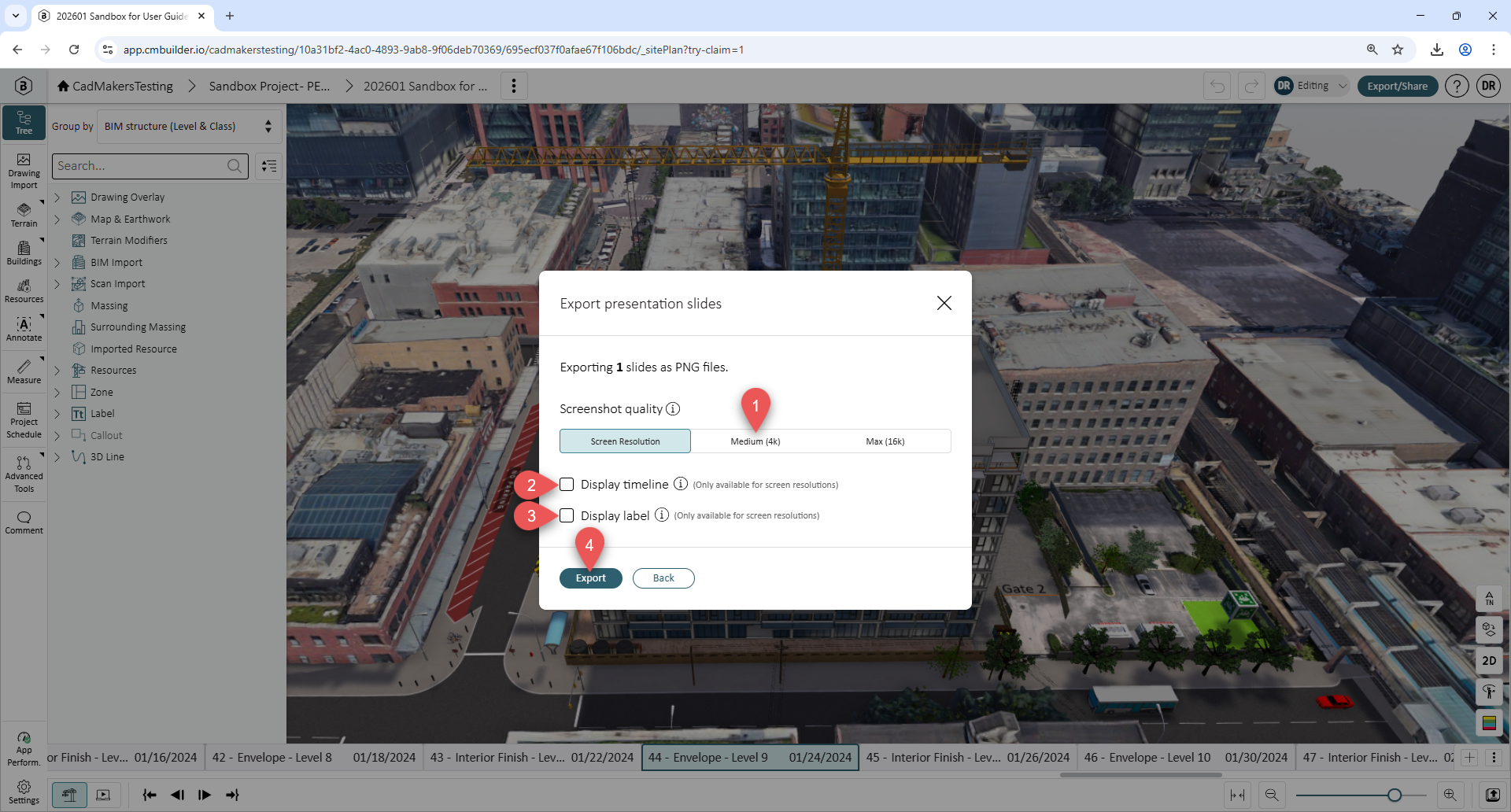

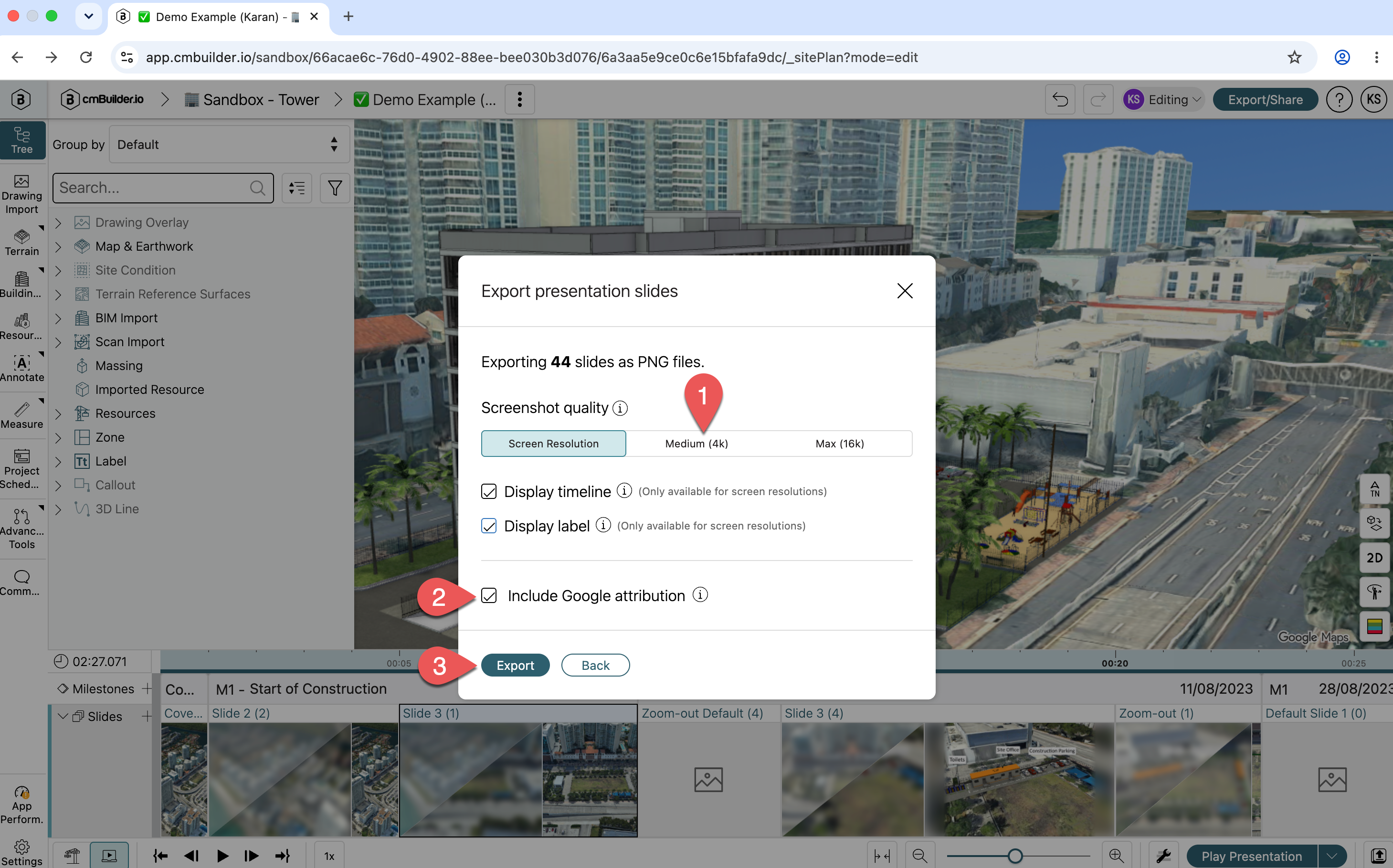

7. From the Export Presentation Slides pop-up, select the image quality (1): Screen Resolution (the default), Max (16k) or Medium 4K (recommended).
   • The Screen Resolution option uses your monitor's resolution and provides the Display timeline and Display label options.
8. Select Include Google attribution (2) to display Google attribution when your export includes map imagery and data from Google Maps. This option does not display attribution on non-Google maps.
9. Click Export (3) to start the downloads. Each selected Slide is downloaded as a separate image.
