5.5 Resource Schedule

Available with the following Subscriptions: All Subscriptions
Available for the following Project Roles: Editor, Admin

Resource Schedule organizes the dates and timelines associated with Resources in a scenario. Use the Resource Schedule to review resource codes, assigned resources, dates, duration, and the Gantt chart in one view.

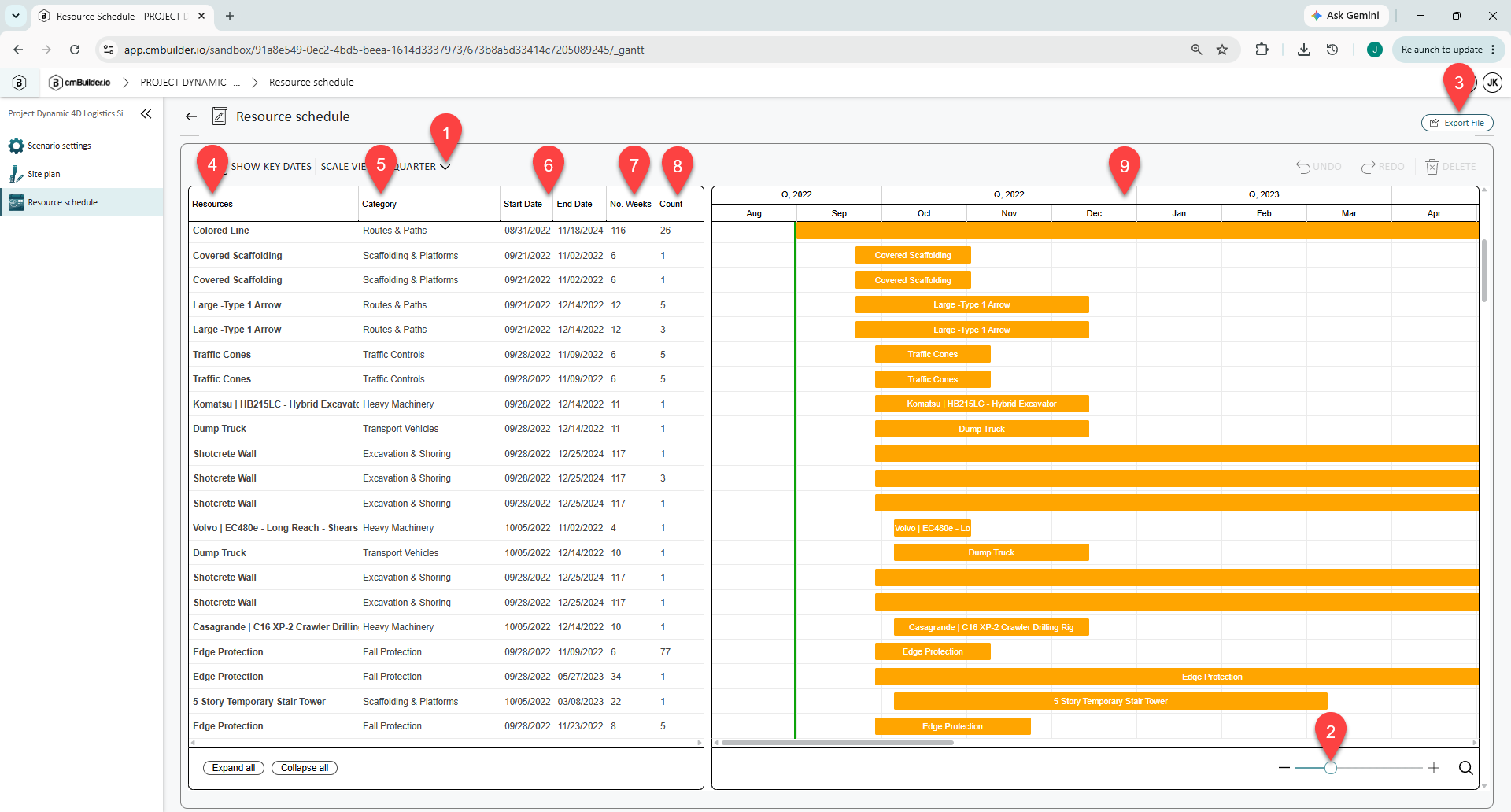

The Resource Schedule is displayed in Gantt chart form. There are options to change the time scale (1) zoom (2) as well as export (3). Each row of lists a specific Resource or collection of Resources, as well as category and data info. The following info is listed in a separate column for each row:

• Resource name (4)
• Resource category (5)
• Resource start and end dates. (6)
• The number of weeks (7) that the Resource or collection of Resources is active in the scenario.
• Quantity of the Resource (8) for any collection of resources
• The Gantt chart showing the Resource scheduling. (9)
