0.12 Navigation Mode

Available with the Following Subscriptions: All Subscriptions
Available for the Following Roles: All roles

Navigate your Scenario using different camera controls that suit your workflow. Choose between three modes designed for different exploration needs:

• Orbit Mode: (default) Ideal for reviewing the overall site. Rotate around a central pivot to understand layout, scale, and relationships.

• Fly Mode: A free-movement first-person view that helps you inspect details and move quickly through complex areas.

• Walk Mode: Ground-level first-person navigation for experiencing interiors and evaluating design from real-world viewpoints.

Mode Switch

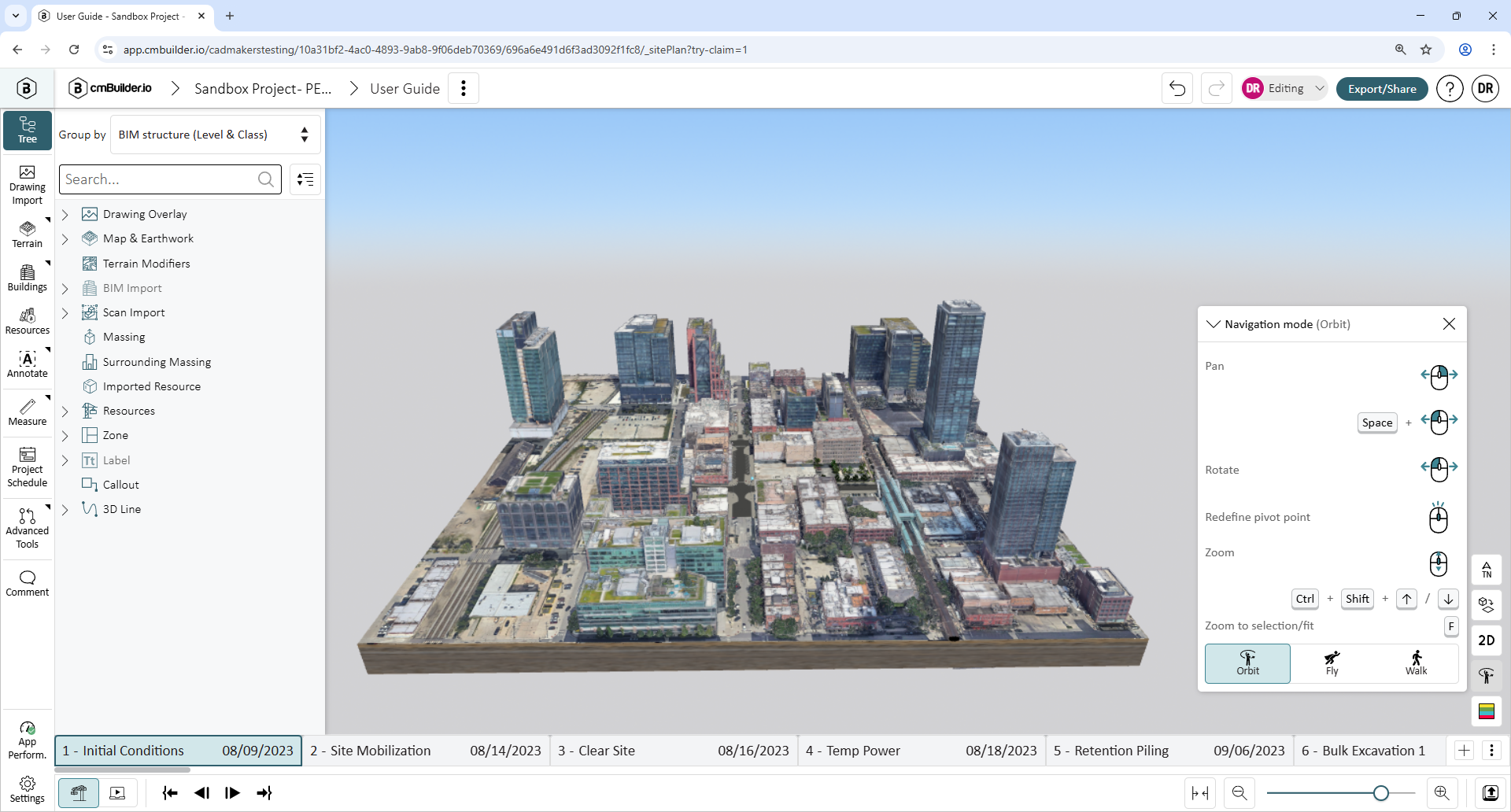

When you initially enter the Scenario, Orbit Mode is selected by default. From the view mode toggles section in the lower-right corner use the Navigation Mode selector to switch between Orbit, Fly, and Walk Modes depending on how you want to explore the Scenario.


Orbit Mode

Orbit Mode lets you rotate around a pivot point, giving you a wide, flexible view of your project.
Pan, rotate, and zoom to explore from any angle.

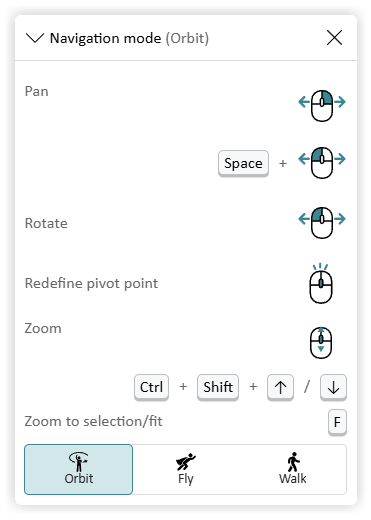

To navigate using Orbit Mode:

1. Switch to Orbit Mode.

2. Right-click and drag to pan across the scene.

   • Alternatively, hold Space and drag with the left mouse button.

3. Left-click and drag to rotate around the pivot point.

4. Click the mouse wheel to redefine pivot point.

5. Scroll the mouse wheel to zoom in and out.

   • Alternatively press Ctrl + Shift + Up/Down Arrow to zoom.

6. Press F to zoom to selection/fit

Fly Mode

Fly Mode provides a first-person, free-flight navigation, allowing you can to move smoothly through the model and inspect details from any height or angle.

💡 Note: This feature is still under development. Some functionality may be limited.

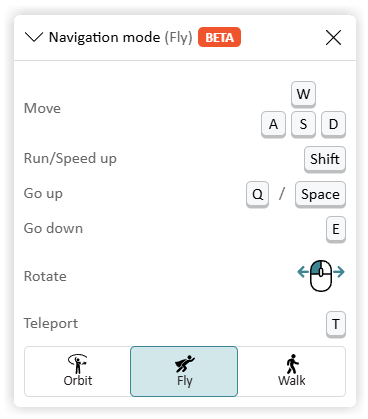

To navigate using Fly Mode:

1. Switch to Fly Mode.

2. Use W / A / S / D to move forward, left, backward, and right.

3. Hold Shift to move faster.

4. Press Q or Space to go up.

5. Press E to go down.

6. Left-click and drag to look around

7. Press T to teleport to the location you are aiming at.

Walk Mode

Walk Mode lets you explore the model from a ground-level, first-person perspective. Ideal for exploring interiors or experiencing the space as you would in real life.

💡 Note: This feature is still under development. Some functionality may be limited.

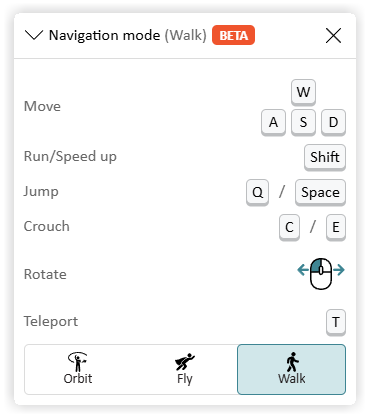

To use the Walk Mode to move through the site:

1. Switch to Walk Mode.

2. Use W / A / S / D to walk forward, left, backward, and right.

3. Hold Shift to walk or run faster.

4. Press Q or Space to jump.

5. Press C or E to crouch.

6. Left click and drag your mouse to rotate your view and look around.

7. Press T to teleport to the point you're aiming at.

💡 Note: Fly and Walk Modes are currently BETA features and are still under development. Some functionality may be limited. We’d love your feedback!

Hover on the BETA tag and click on "Share Feedback" button so we can make this better for you.
