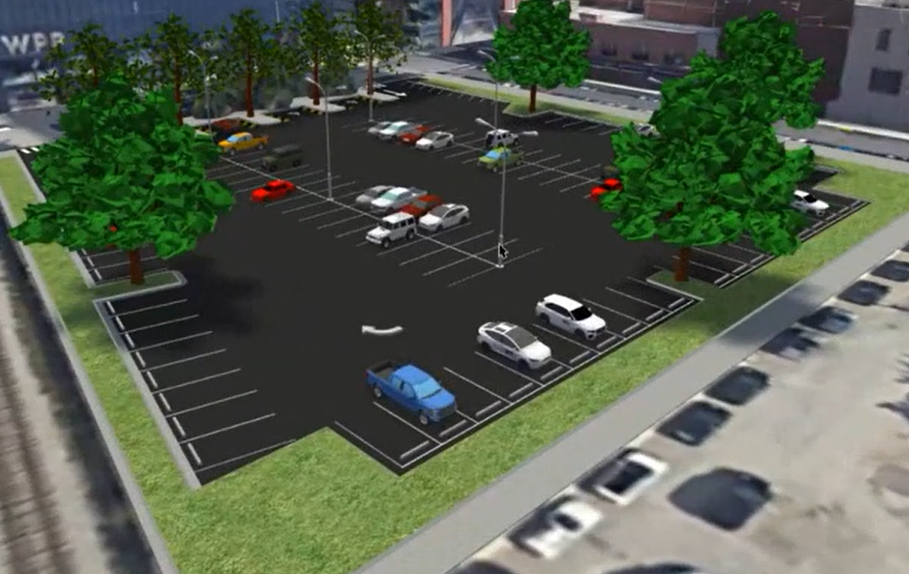

Creating Parking Lots in cmBuilder

This article describes how to use the various tools to create a parking lot for your site. The goal here is to show how to think about parking lots and assemble them efficiently.

By the end, you’ll have a practical approach for building parking lots that are clear for coordination, quick to update, and polished enough for stakeholder communication.

1. Build in Layers (It’s Faster and Easier to Update)

The best parking lots in cmBuilder are built as a stack of layers rather than one big, perfectly aligned sketch. Think of each “parking lot” as a few coordinated components working together.

• Base surface (asphalt or concrete)
• Striping & symbols (stalls, arrows)
• Curbs & edges
• Sidewalks & planters
• Trees, cars, and site context

Tip: Don’t over-invest in edge-to-edge perfection. Overlapping layers are often cleaner and much quicker to revise.

2. Start with a Flat “Work Surface” When It Helps

Before you place stalls, curbs, and symbols, decide if you want your parking area to be flat. If the existing terrain is sloped or uneven, it’s often faster to cut a flat area first - then build your layout confidently.

Great times to use excavation

• Sloped or irregular terrain that makes precise placement annoying
• Tight stall spacing or areas where elevation changes create visual noise
• Large parking areas where managing elevations would slow you down

A flattened area makes it easier to place and adjust everything around it. You can always refine slopes later if needed.

3. Use Resources for Stall Striping (Don’t Draw Every Line)

Parking stripes repeat - so they should be built with repeatable objects. Instead of manually drawing individual stall lines, use parking marking resources (for example, a “double-space parking markings” resource).

These resources are typically parametric, so you can tune them quickly:

• Stall width
• Stall depth / marking length
• Spacing direction (bias left or right)
• Rotation angle (great for angled parking)
• Replication width (how far the pattern runs)

Rule of thumb: If it repeats, it should be a resource - not a manual sketch.

4. Curbs That Read Clearly: Use Detached 3D Lines

Curbs are a big part of what makes a parking lot “feel real” in 3D views. A reliable approach is to represent curbs using 3D lines that are detached from the terrain.

Why detach? If a curb line is attached to terrain, it can behave like a 2D reference and lose the thickness/edge definition you want in 3D. Detached lines can be nudged up or down to get a more rounded, readable curb profile.

Tip: Small elevation tweaks can make curb edges look much more intentional in perspective views.

5. Planters & Islands: Combine Zones + Lines (Optional Massing)

Planters and islands are a perfect example of “layered thinking”:

• Zones for grass/mulch surfaces
• 3D lines for curb outlines (clean edges)
• Massing (optional) when you want a thicker, more dimensional curb or planter boundary

If you need the planter edge to pop visually (especially in presentations), add massing selectively - use it where it improves readability, not everywhere.

6. Save Time with Zone Stacking (No Need for Perfect Alignments)

One of the easiest speed boosts: stack zones on top of each other instead of trying to draw zones that perfectly align edge-to-edge.

Example stack:

1. Asphalt zone (base)
2. Sidewalk zone (on top)
3. Buffer/curb zone (on top)
4. Planter zone (on top)

This keeps your workflow simple and makes edits painless when the layout changes.

7. Add Traffic Flow Cues with Arrows and Symbols

Parking lots get much easier to understand when traffic intent is obvious. Use resource-based symbols like:

• Turn arrows
• Entry/exit cues
• Flow indicators

These are typically easy to rotate and recolor, so you can keep a consistent visual language across the whole site.

8. Use Massing Where Visual Hierarchy Matters

Massing is a great “accent tool” for parking lots. Use it when you want certain elements to read clearly at a distance:

• Raised curbs that need visual weight
• Planter boundaries that should stand out
• Edges adjacent to buildings, haul routes, or key pedestrian paths

Tip: Keep massing targeted - striping and repetitive details are usually better handled with resources.

9. Speed Trick: Project and Offset Instead of Redrawing

When you need a new shape that closely follows an existing one (like a planter edge following a curb), don’t redraw it from scratch.

Use projection to “borrow” an existing outline, then create an offset for consistent spacing. This keeps geometry clean and ensures your details stay aligned as you iterate.

10. Add Context (Lightly) for Real-World Readability

Once the lot is structured, add context elements to help viewers understand scale and intent - without overwhelming the model.

• Add a few vehicles for scale
• Place trees or planters at visual anchors
• Keep density realistic for your audience (coordination vs. presentation)

Wrap-Up: A Parking Lot Is a Workflow

In cmBuilder, parking lots come together by combining tools in a clean, repeatable way: use layers, lean on parametric resources for repetition, stack zones to save time, and add 3D curb definition where it matters.

The result is a parking lot that’s quick to build, easy to update, and clear for coordination and communication.
